WIRELESS PROFESSIONAL is the most advanced electrostimulator on the market today. It offers convenience, ease of use and time savings, optimising patient treatment. Wireless technology provides a new, unrestricted stimulation system that simplifies use and allows multiple simultaneous sessions to be managed independently (Multi-Sessions™).

WIRELESS PROFESSIONAL 4CH FULL is a wireless stimulator designed for the main electrotherapy indications: Standard (TENS/NMES) and Full (Neurology, ACL). Wireless technology and the Trigger function make it possible to manage sessions involving voluntary contractions or in which the physiotherapist wants to control stimulation manually. It comes with 2 remote controls and a smart docking station to manage several sessions simultaneously (Multi-Sessions™). Full program configuration - 4 channels - Multi-Sessions™.

Features
Rehabilitation I
Disuse atrophy, Disuse atrophy prevention, Strengthening, Muscle injury, Motor point
Pain relief I
TENS (100Hz), Frequency-modulated TENS, Endorphinic, Decontracting, Pulse-width-modulated TENS, Burst, Alternating Burst/TENS
Vascular
Venous insufficiency 1, Venous insufficiency 2, Arterial insufficiency 1, Arterial insufficiency 2, Capillarisation, Heavy legs, Cramp prevention
Physical preparation I
Endurance, Strength, Active recovery
Physical preparation II
Muscle building, Power, Endurance, Explosive strength, Hypertrophy, Lumbar strengthening, Recovery plus, Toning massage, Relaxing massage, Anti-stress massage, Core stabilisation, Plyometrics
Pain relief II
TENS (80Hz), Knee pain, Trapezius pain, Shoulder pain, Fracture pain, Cervicalgia, Dorsalgia, Low back pain, Lumbosciatica, Acute low back pain, Epicondylitis, Torticollis, Arthralgia
Rehabilitation II
Hip prosthesis, Patellofemoral syndrome, ACL, Rotator cuff, Lumbar stabilisation, Cardiac rehabilitation, Agonist/antagonist atrophy, Agonist/antagonist strengthening, Atrophy (mod. freq.), Strengthening (mod. freq.), Atrophy for haemophiliacs, Strengthening for haemophiliacs
Neurological rehabilitation
Hemiplegic foot, Spasticity, Hemiplegic shoulder, Neurological rehabilitation slow start

Wireless technology
Eliminates all limitations caused by cables. Gives the patient total freedom of movement, making handling easier and allowing active exercise to be combined with electrostimulation for better results.

Multi-Sessions™

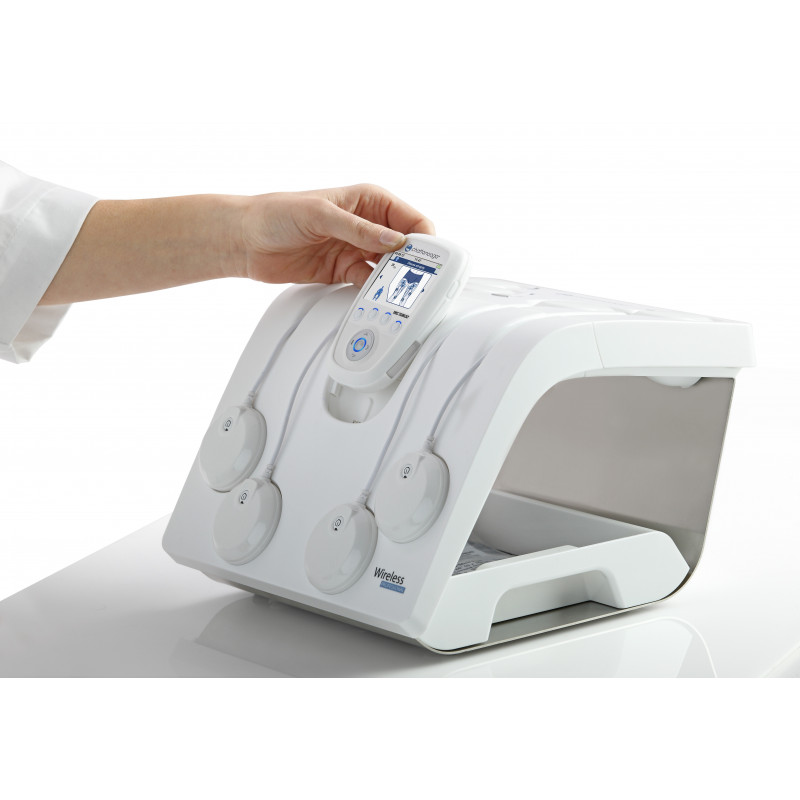

Available only on Wireless 4CH Standard and Full, the device comes with 4 modules, 2 remote controls and a smart docking station that synchronises modules and remote controls to manage several independent sessions simultaneously. Additional remote controls/modules optional.

Remote control
Design suited to professional use, with a silicone keypad that protects against gel and water ingress and makes the remote control easier to handle.

Muscle Intelligence™ technology
4 functions are available on each module.

Mi-Scan: a personal touch
This function uses the sensor to determine and adapt the optimal stimulation parameters for each patient and each session.

Mi-Action: patient participation
Combined active exercise allows the therapist to better integrate electrotherapy into treatments. With Mi-Action, patients can trigger stimulation with their own voluntary muscle contraction.

Mi-Tens: self-regulated pain therapy
Allows continuous control of the stimulation intensity level to eliminate unwanted contractions during an analgesic program.

Mi-Range: intensity control
Graphically shows the therapist the minimum and maximum intensity levels to achieve optimal muscle contractions in low-frequency programs (endorphinic type).

Trigger function
Starts a voluntary work phase where required by protocols (hemiplegic foot, spasticity)

+ TENS function
You can select a program and add TENS on other channels, allowing two different body areas or two patients to be treated simultaneously, or TENS and NMES to be combined when needed.

Skip
Manages session duration and skips directly to the next phase (recovery) when necessary.

Motor point pen
This useful tool, included in the kit, helps find the optimal electrode position.

Pause mode
Pauses stimulation when electrodes need to be repositioned.

Programmability
Patient lists and histories can be created, as well as customised stimulation programs.

Battery life and fast charging
Full-day battery life; with the docking station a complete charging cycle takes a maximum of 1h30.

Information at your fingertips
Electrode placement, program parameters and program explanations can be viewed directly on the remote control.

Warranty
The warranty is 3 years from the date of purchase.

Specifications
Medical device: Class IIa
Electrical protection: IP22
Electrical safety class: Class II, type BF
Complies with safety tests: IEC 60601-1, IEC 60601-1-2, IEC 60601-2-10
Power supply:
Remote control battery: Rechargeable lithium polymer (LiPo) 3.7[V]/≥ 1500[mAh].
Module battery: Rechargeable lithium polymer (LiPo) 3.7[V]/≥ 450[mAh].
Docking station charger cable: Only 5[V]/3.5[A] adapters with serial number 6490xx may be used to charge the Wireless Professional
Battery life: remote control and module battery life: approx. 5 years. Cannot be replaced by the user!
Neurostimulation programs:
Channels: four independent, separately adjustable channels
Pulse shape: compensated constant rectangular current
Maximum pulse intensity: 120 mA
Pulse intensity increments: manual adjustment of stimulation intensity from 0 to 999 (energy) in minimum increments of 0.25 mA
Pulse width: 30 to 400 μs
Maximum electrical charge per pulse: 96 microcoulombs (2x48 μC, compensated)
Standard pulse rise time: 3 μs (20%-80% of maximum current)
Pulse frequency: 1 to 150 Hz
Pulse frequency: 100 Hz
Dimensions:
Remote control: 105 x 66 x 19 mm
Module: 55 x 16 mm
Docking station: 265 x 240 x 200 mm
Weight:
Remote control: 116 g incl. battery
Module: 62 g incl. battery
Docking station 4CH: 2.4 kg
Docking station 2CH: 650 g

The kit contains (included in the package):
2 Remote controls 00113X
4 Stimulation modules 984350
1 Smart docking station 4 channels 6831XX
1 Docking station charger cable 6490XX
1 USB cable 601163
2 Packs of small electrodes (5x5 cm 1 snap) 42204
2 Packs of large electrodes (5x10 cm 1 snap) 42223
2 Packs of large electrodes (5x10 cm 2 snap) 42203
1 User manual and practical guide on CD/USB 13-8870
1 Quick start guide/warnings booklet 885932
1 Bottle of gel 602047
1 Motor point pen 980020
1 Carrying case 680041
2 Lanyards 1494
1 White protective shell 5529024
1 Blue protective shell 5528535
1 Set of coloured module clips 5529220
